LED CXA3070 Cree XLamp LED 117W Cold white light DC 38.5-42V 1925-2800mA

LED CXA3070 Cree XLamp LED 117W Cool white light DC 38.5-42V 1925-2800mA. The condition New.

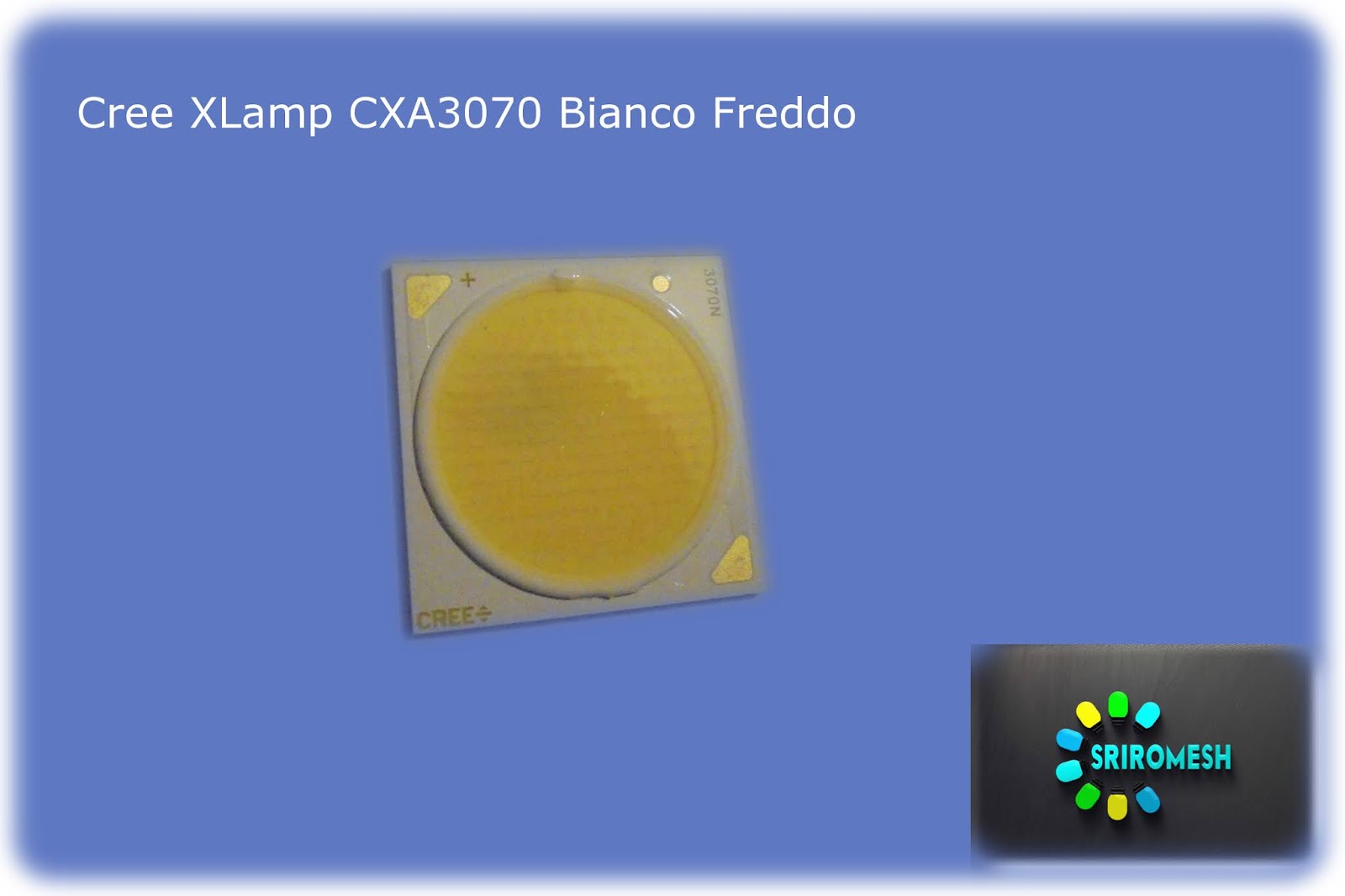

XLamp CXA3070
High lumen output and efficacy from a single easy-to-use LED array
The XLamp® CXA3070 LED array offers high luminous flux and high efficacy in one easy-to-use package that eliminates the need for reflow soldering. Optimized to simplify designs and reduce system costs, the CXA3070 LED array is capable of delivering system-level performance from 8000 to over 10000 lumens, enabling very high lumen output applications such as high housing and replacement. of ceramic metal halides.
Dimensions 27.35 x 27.35 mm
High CRI product options
Maximum drive current 2.8 A
Maximum power (W) 117 W
Light output 9000 - 11000 lm
Maximum efficiency under binning conditions (lm / W) 145 lm / W
Light emission surface (LES) 23 mm
Forward direct voltage 36.2 V @ 1.9 A
Maximum reverse current 0.1 mA
Viewing angle 115 °
